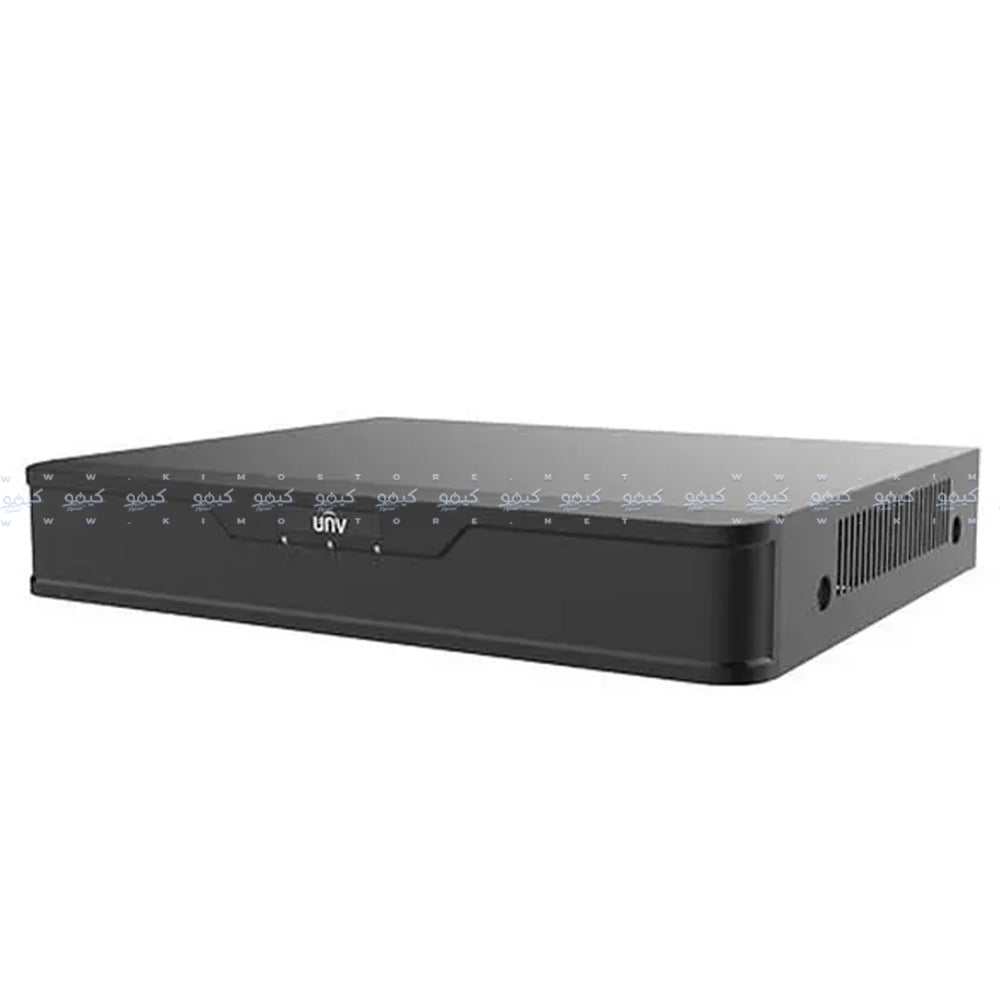

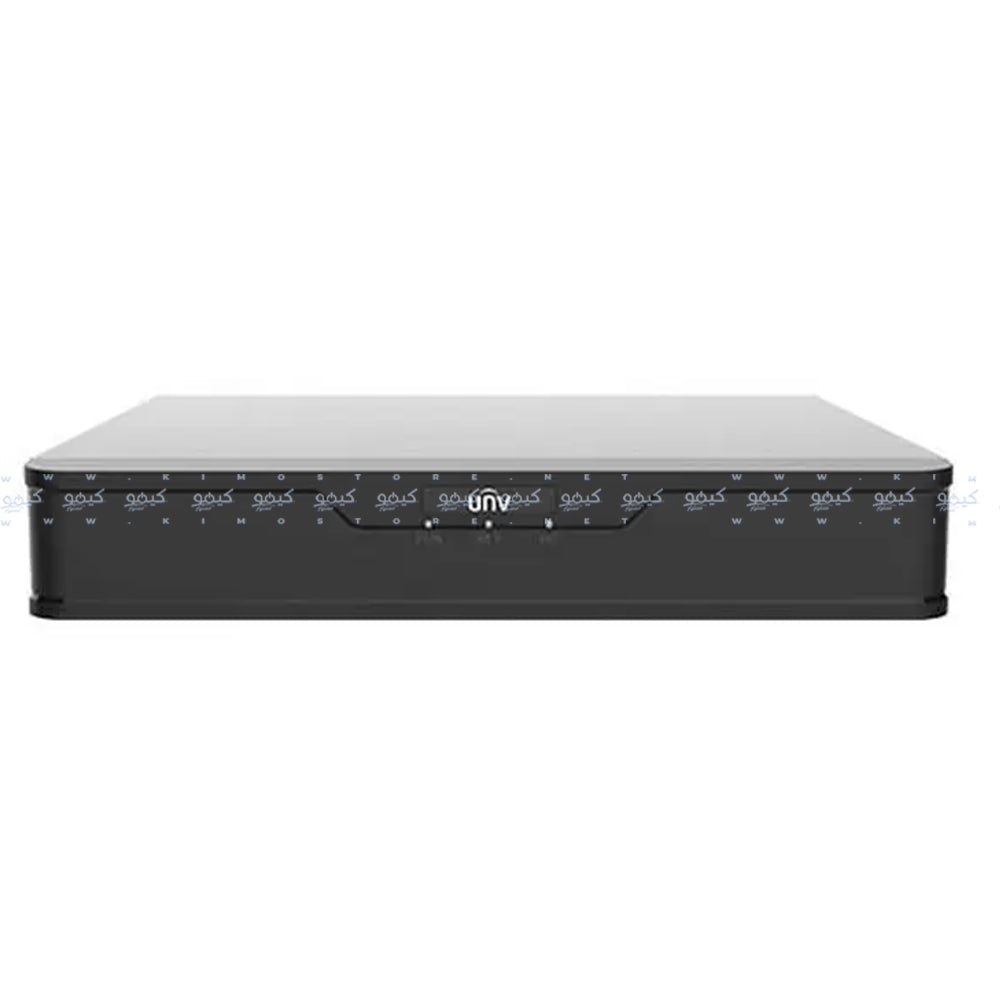

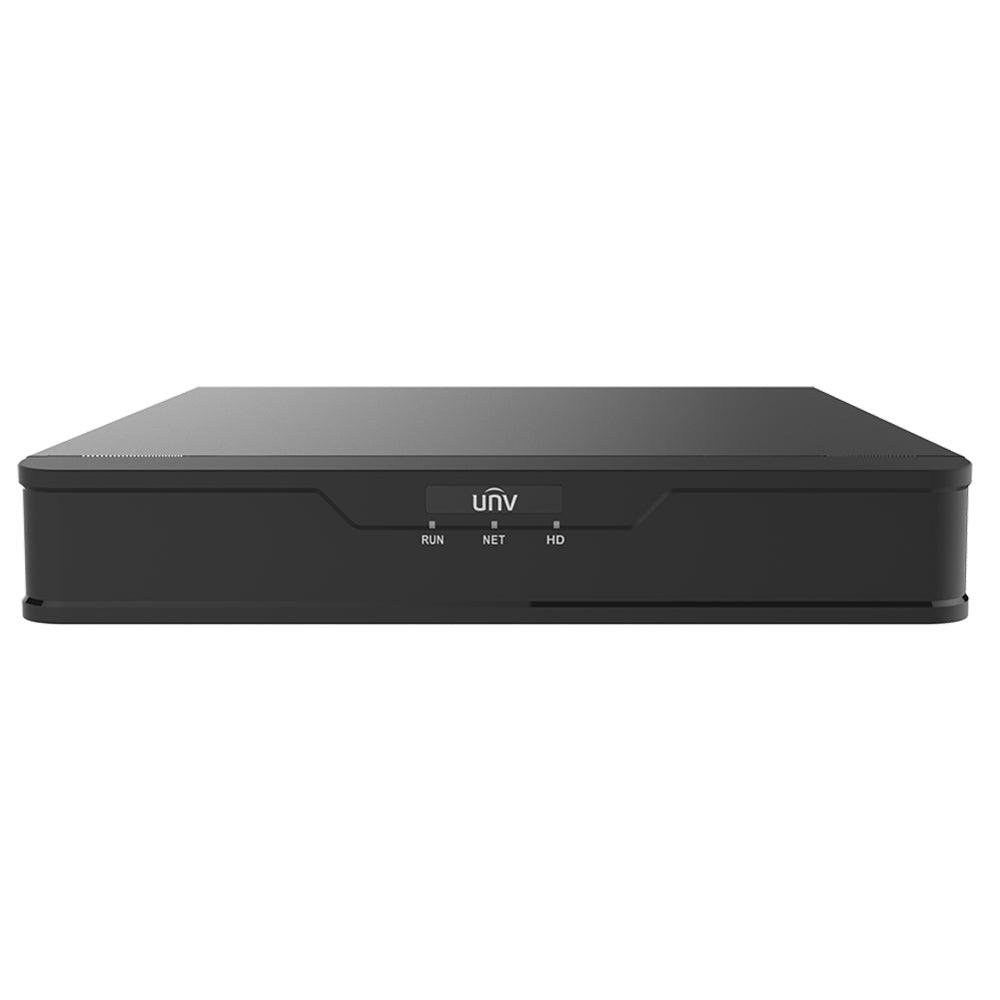

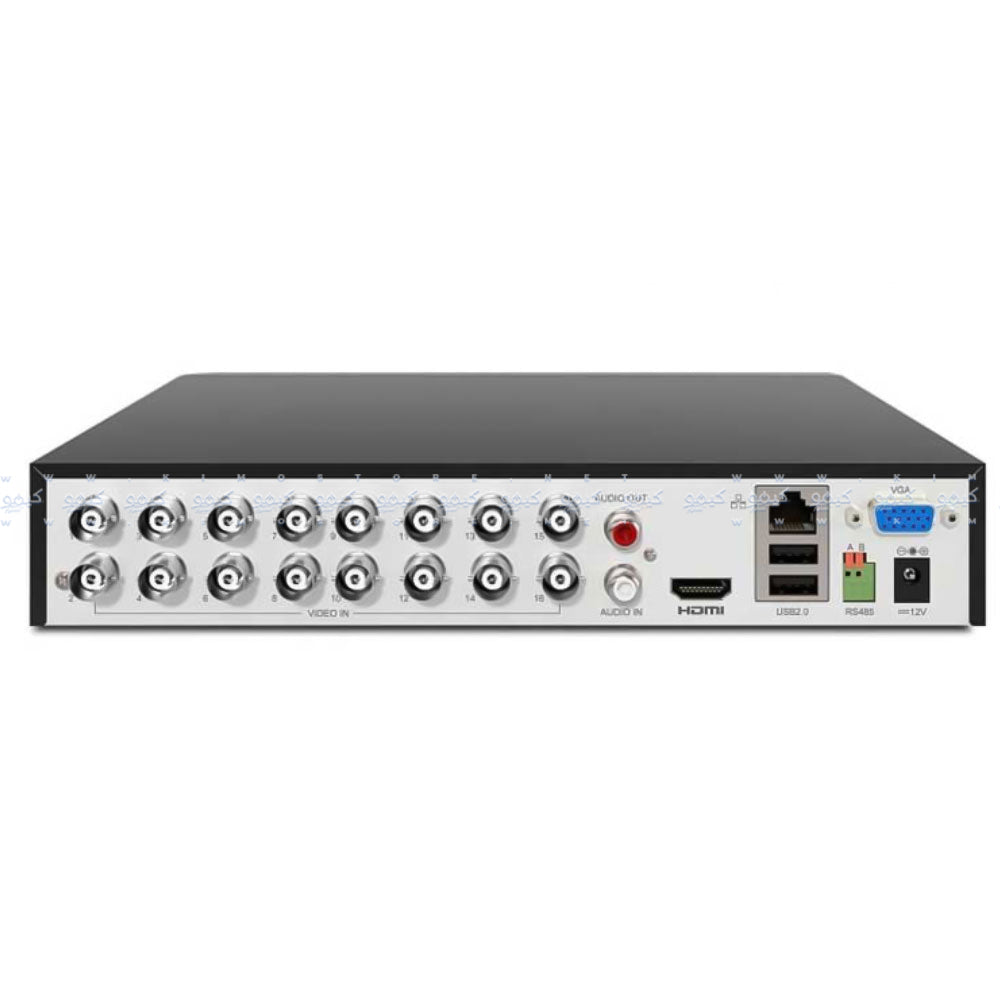

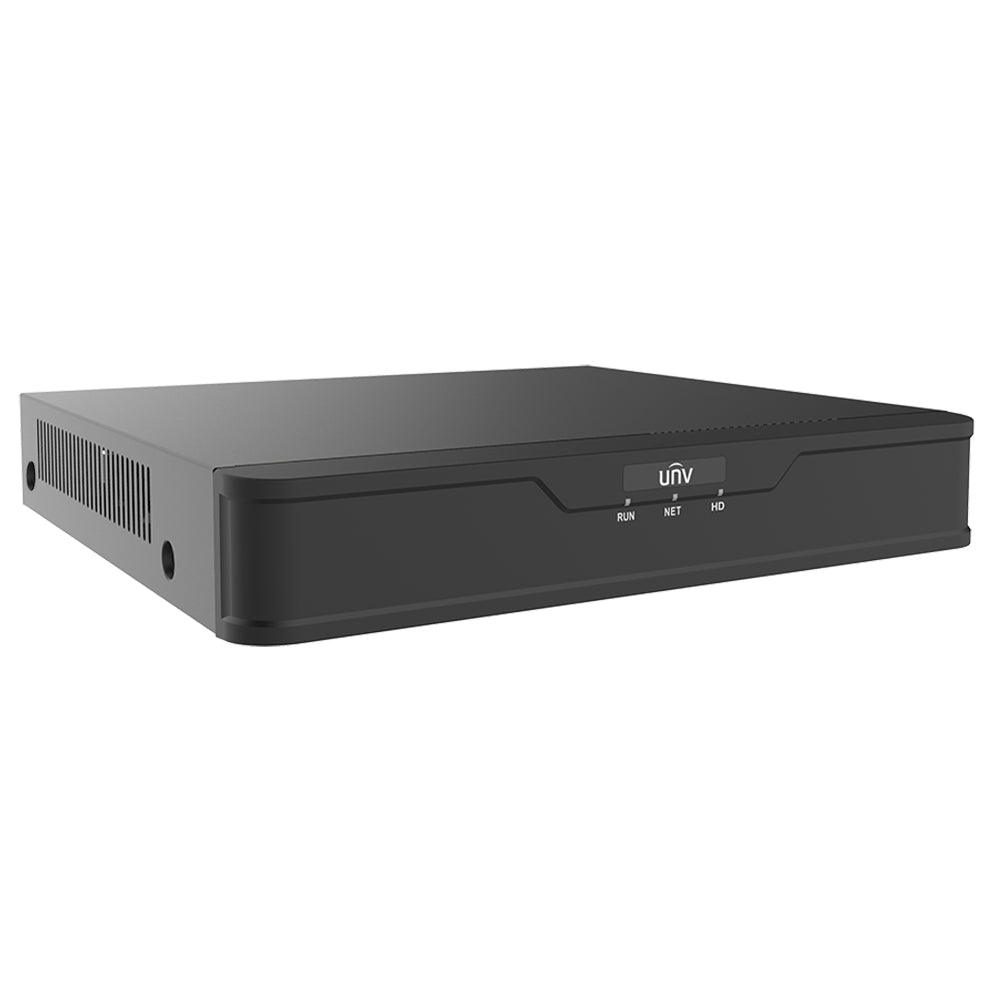

Name: Uniview XVR301-16G3 Up To 4K XVR 16CH
Brand: UNIVIEW
SKU: 124400
Price: 3750.0 EGP
Availability: OutOfStock

Roll over image to zoom in Click on image to zoom

Analog Video Input: 16-ch, BNC
Video Live: 5MP
Video Recording: 1080P
IP Video Input: 8-ch(up To 16-ch After Analog Camera Conversion)
Video Inputs: AHD/TVI/CVI/CVBS
Frame Rate: Main stream: 5MP Lite@6fps / 4MP Lite@8fps / 1080P Lite@12fps8 / 720P@12fps - Sub stream: D1@6fps / D1@8fps / D1@12fps / D1@12fps
VGA/HDMI Output: 1920x1080/60Hz, 1920x1080/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Decoding Capability: Analog: 8 x 5MP Lite@6, 8 x 4MP Lite@8, 8 x 1080P Lite@12 - IP: 1 x 8MP@30, 2 x 4MP@30, 4 x 1080P@30

HDD Type: 1x SATA Interface
Capacity: Up to 8TB for each HDD (The Maximum HDD Capacity Varies With Environment Temperature)
Network Interface: 1x RJ45 10M/100M Self-Adaptive Ethernet Interface
USB Interface: Rear Panel: 2 x USB2.0
Serial Interface: 1 x RS485

Incoming Bandwidth: 40Mbps (up to 56Mbps after all analog camera conversion)
Outgoing Bandwidth: 64Mbps
Remote Users: 128
Protocols: TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP

General Alarm: Motion Detection
Operating Condition: Temperature: -10°C ~ + 55°C ( +14°F ~ +131°F ) / Humidity: ≤ 90% RH(non-condensing)
Power Supply: 12V DC
Power Consumption: ≤ 10 W( without HDD )
Dimensions (W × D × H): 260 × 226 × 47mm

Uniview XVR301-16G3 Up To 4K XVR 16CH

Description
