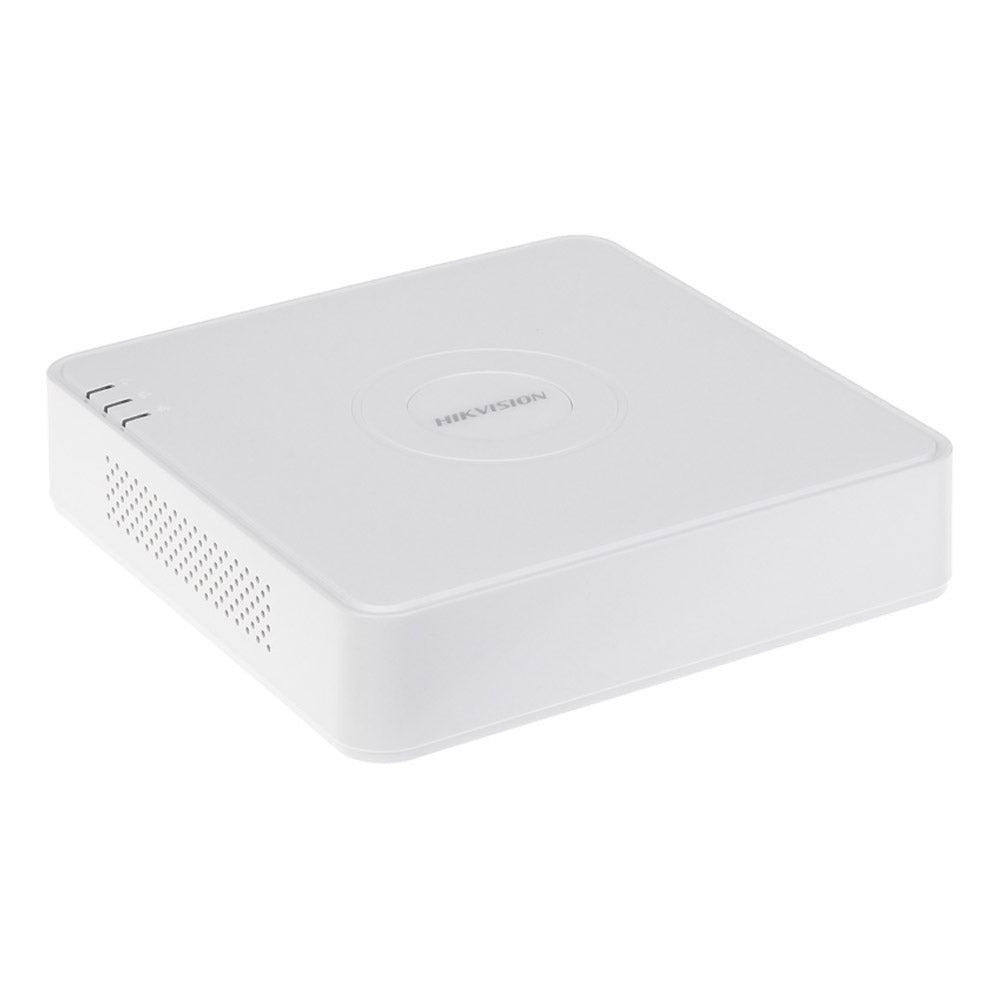

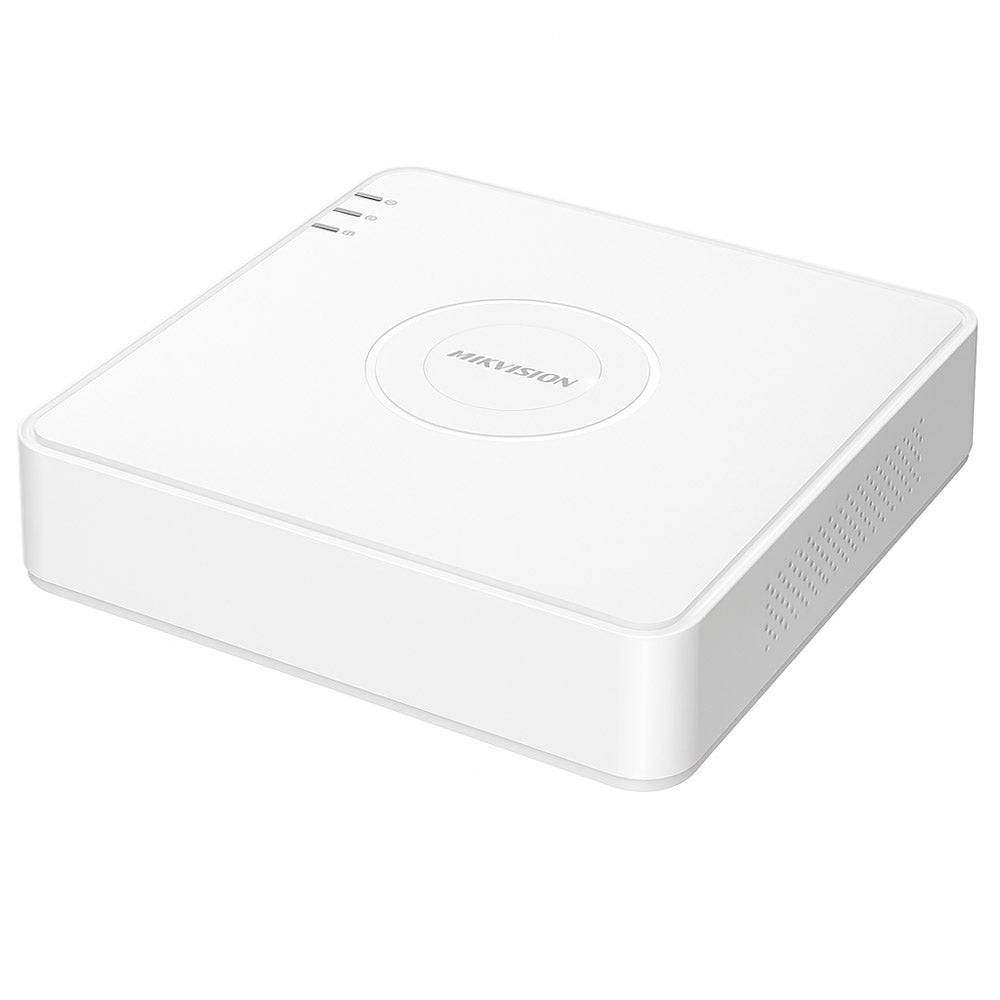

Hikvision DS-7104HGHI-M1(C) FHD DVR 4CH

• IP Video Input: 1-ch (up to 5-ch), Up to 1080p Resolution

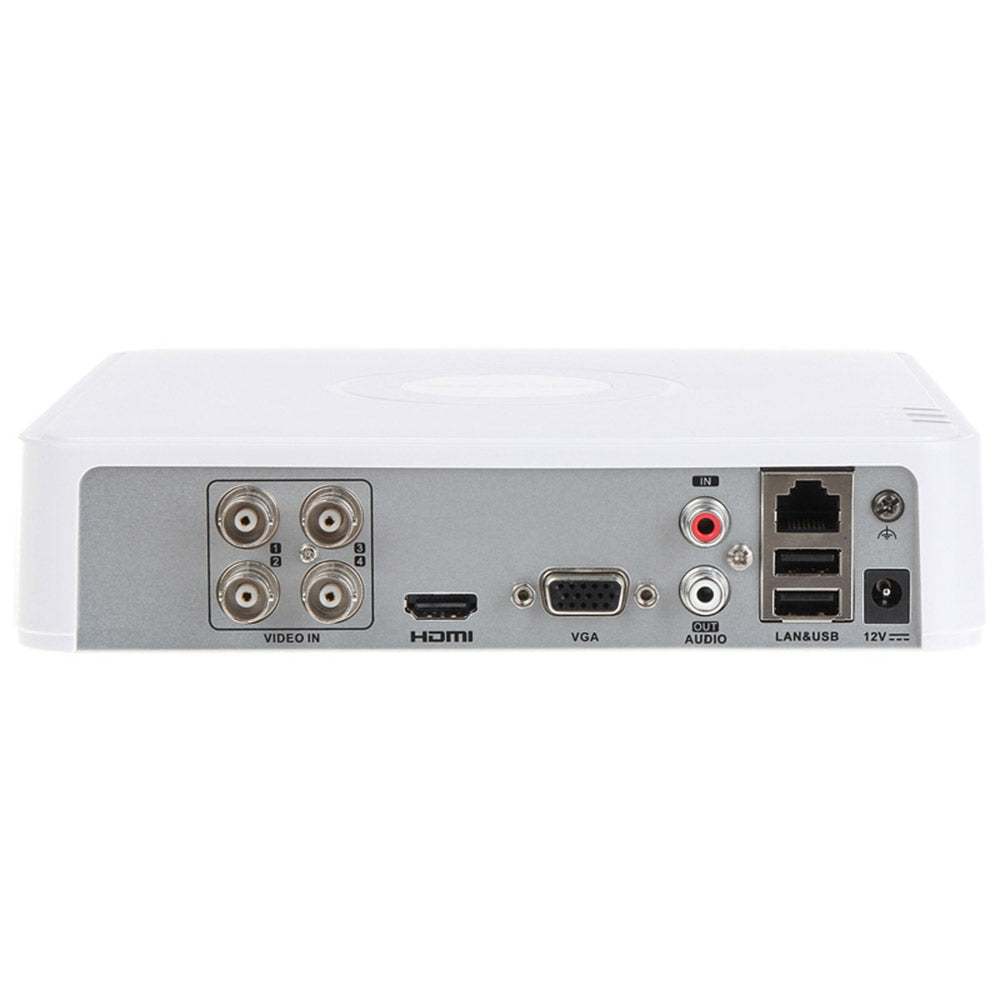

• Analog Video Input: 4-ch BNC Interface (1.0 VP-P, 75 Ω), Supporting Coaxitron Connection
• Video Live: 1080P
• Video Recording: 720P
• Video Input Types: HDTVI/AHD/CVI/CVBS/IP
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) - 4-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Frame Rate: Main Stream: Up To 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N), Sub Stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
• Video Bitrate: 32 Kbps to 4 Mbps
• Stream Type: Video, Video & Audio
• Audio Bitrate: 64 Kbps

• Network Interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface
• Total Bandwidth: 64 Mbps
• Remote Connection: 32

• HDD Type: 1x SATA
• Capacity: Up to 4TB Capacity for Each Disk
• USB: Rear Panel: 2× USB 2.0

• Operating Temperature: -10 °C to 55 °C (14 °F to +31 °F)
• Operating Humidity: 10% to 90%
• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 16 W
• Dimensions (W × D × H): 200 x 200 x 48mm
• Weight: ≤ 0.8 kg

Warranty: 1 Year With Warranty Of The Authorized Agent
