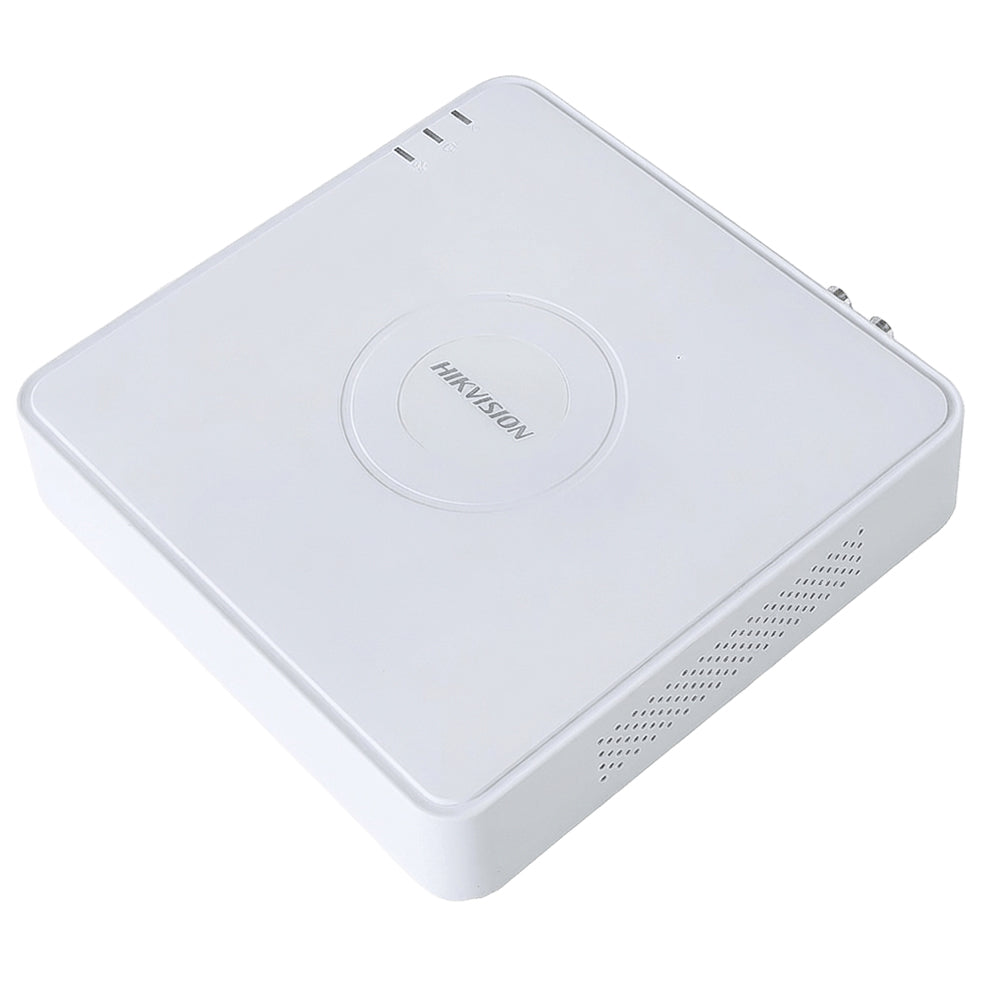

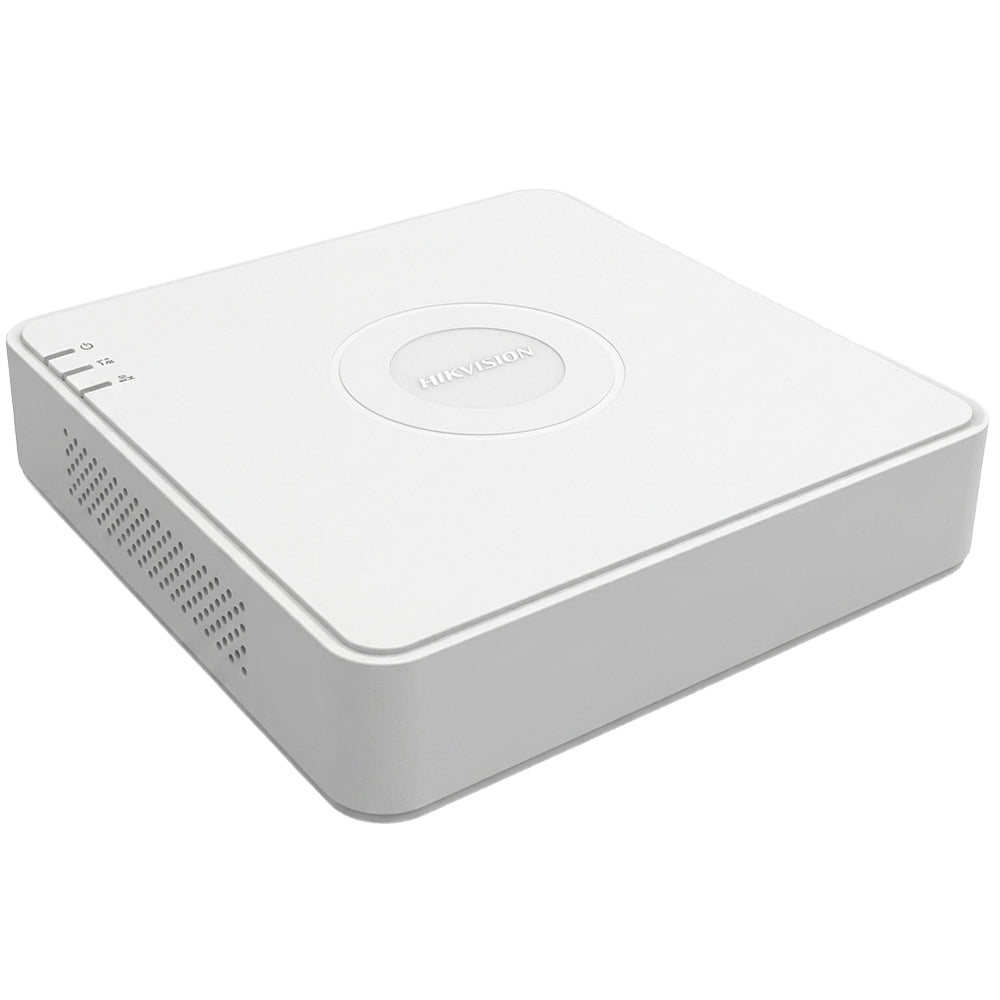

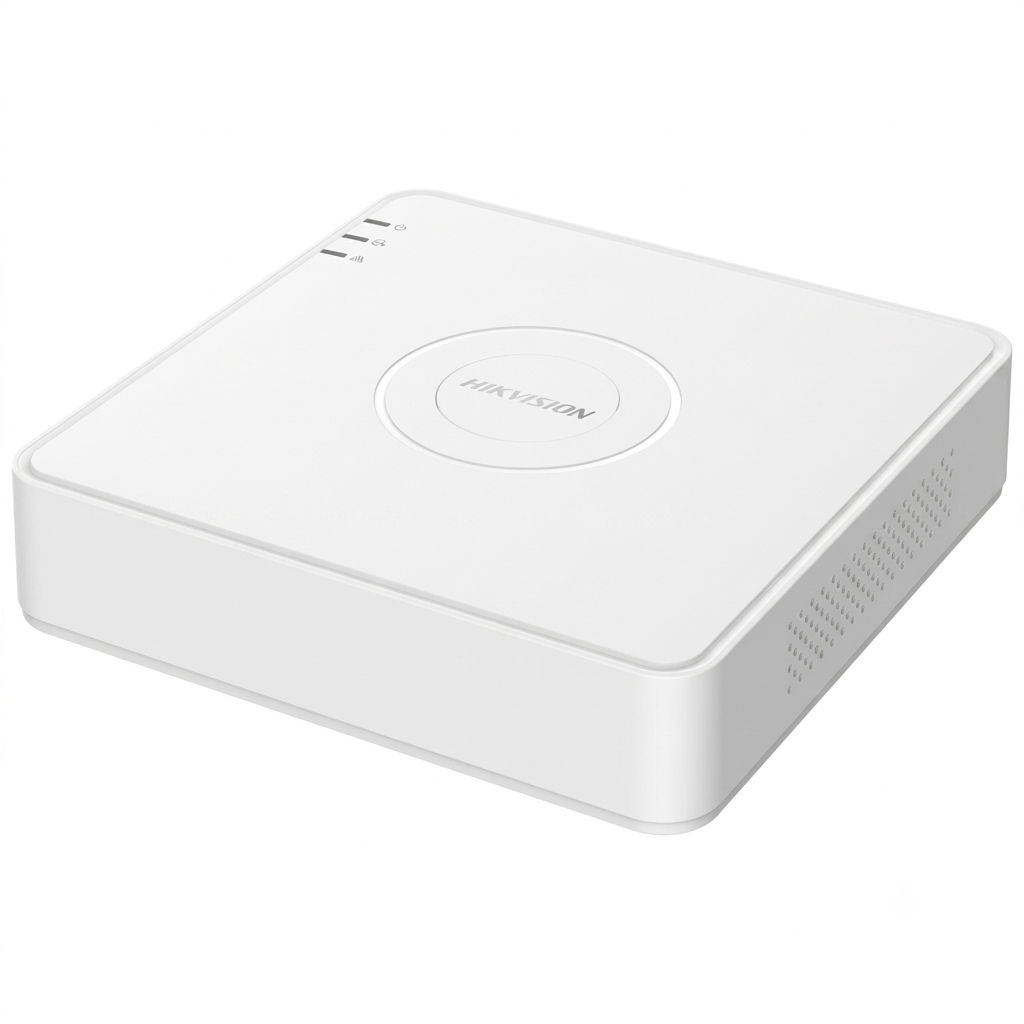

Hikvision IDS-7104HUHI-M1/S 4K DVR 4CH

• IP Video Input: 2-ch (up to 6-ch), Up to 8 MP Resolution
• Analog Video Input: 4-ch BNC Interface (1.0 VP-P, 75 Ω), Supporting Coaxitron Connection
• Video Live: 8MP(4K)
• Video Recording: 5MP
• Video Input Types: HDTVI/AHD/CVI/CVBS/IP
• VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• HDMI Output: 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
• Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ) - 4-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Frame Rate: Main Stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
  1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N), Sub Stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
• Video Bitrate: 32 Kbps to 10 Mbps
• Stream Type: Video, Video & Audio
• Audio Bitrate: 64 Kbps

• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet
• Total Bandwidth: 96 Mbps
• Remote Connection: 32

• HDD Type: 1x SATA
• Capacity: Up to 10TB Capacity for Each Disk
• USB: 2× USB 2.0

• Operating Temperature: -10 °C to 55 °C (14 °F to +131 °F)
• Operating Humidity: 10% to 90%
• Power Supply: 12 VDC, 1.5 A
• Power Consumption: ≤ 15 W (Without HDD)
• Dimensions (W × D × H): 200 x 200 x 48mm


Warranty: 1 Year With Warranty Of The Authorized Agent
