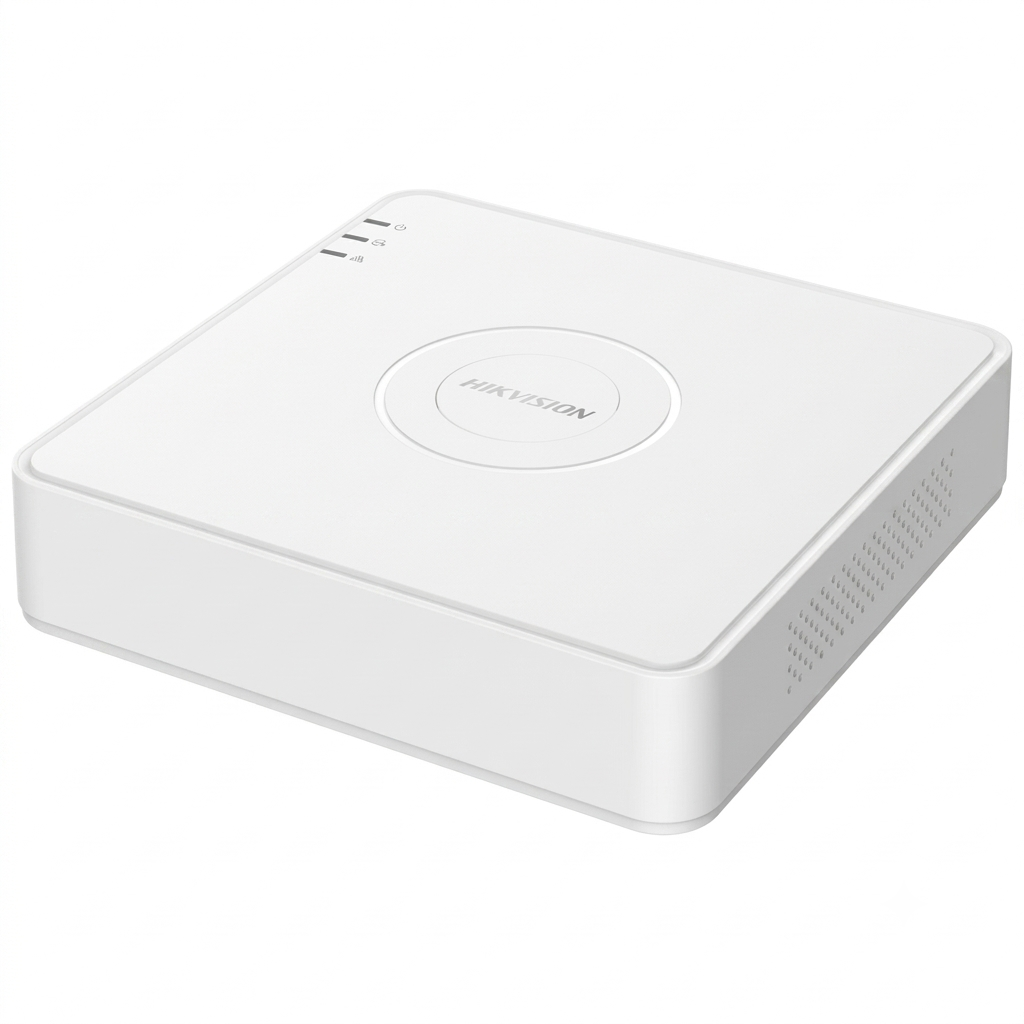

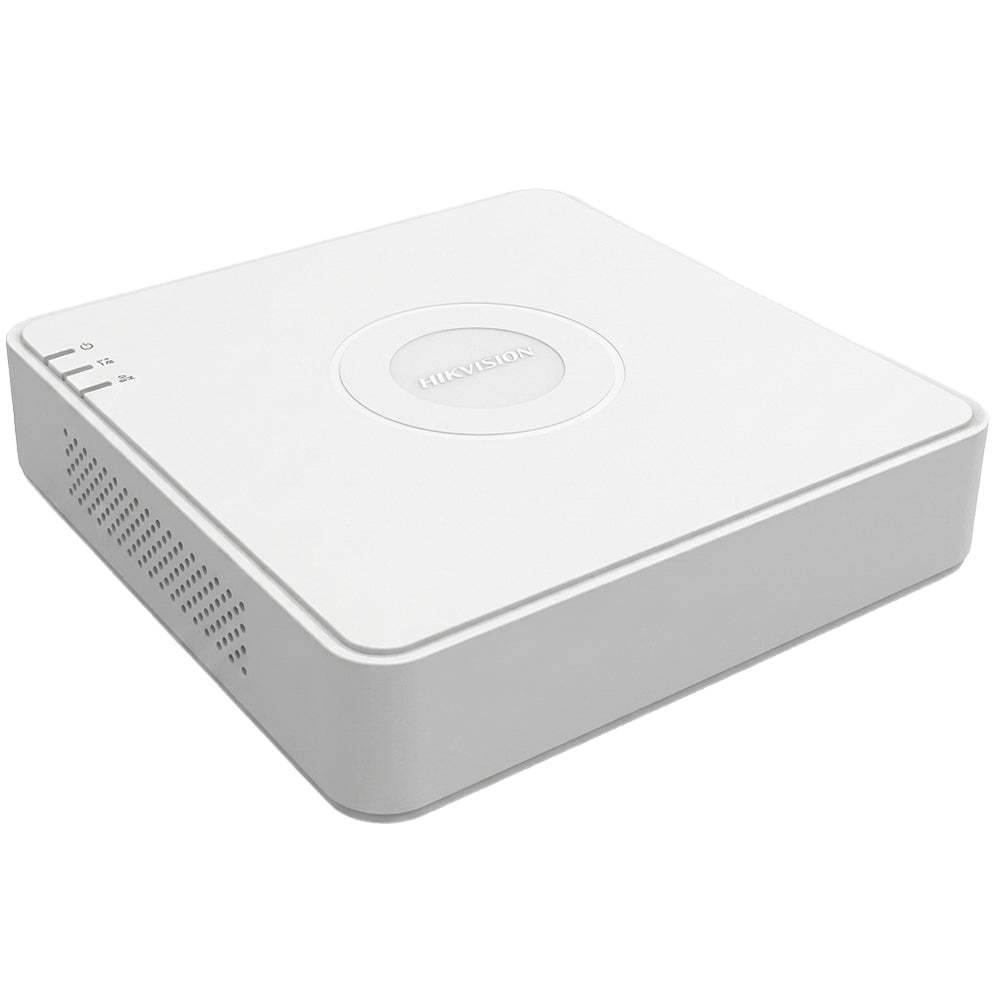

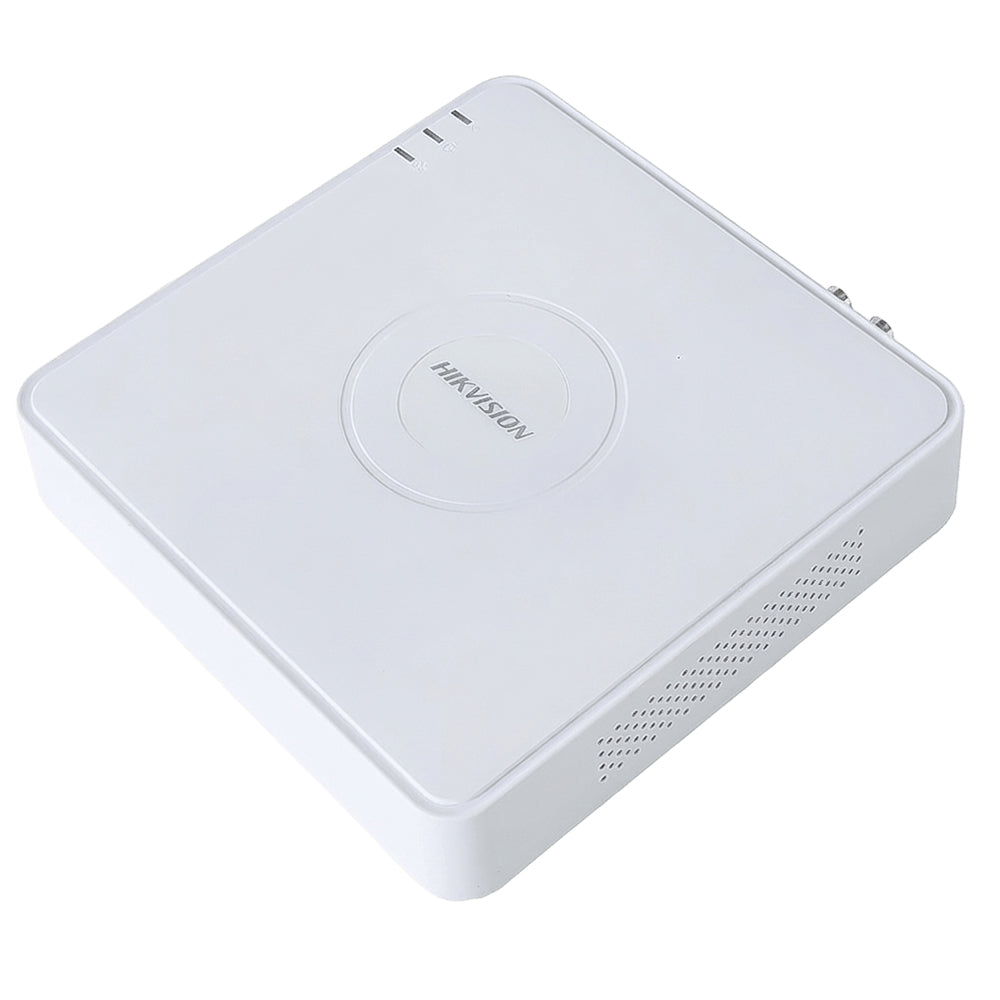

- Brand: Hikvision
- Model: IDS-7104HUHI-M1/S
- Type: DVR
-
Video/Audio
- IP Video Input: 2-ch (up to 6-ch)
- Enhanced IP Mode on: 4-ch (up to 8-ch), Each Up To 4 Mbps Up to 8 MP Resolution
- Analog Video Input: 4-ch, BNC Interface (1.0 Vp-p, 75 Ω), Supporting Coaxitron Connection
- Video Live: 8MP(4K)
- Video Recording: 5MP
- Video Formats: HDTVI/AHD/CVI/CVBS/IP
- VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- HDMI Output: 1-ch, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS Input: PAL/NTSC
- Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 4-ch via coaxial cable
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
-
Recording
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution: 8 MP/5 MP/3K/4 MP/3 MP/1080p/720p/WD1/4CIF/VGA/CIF
- Frame Rate: Main stream: 8 MP@8 fps/3K@12 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) - Sub-Stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Dual-Stream: Support
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
-
Interface
- HDD Type: 1x SATA Interface
- Capacity: Up to 10 TB Capacity For Each Disk
- Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface
- USB Interface: 2 × USB 2.0
-
General
- Operating Temperature: -10 °C to +55 °C
- Operating Humidity: 10% to 90%
-
Power Supply: 12 VDC, 1.5 A
- Power Consumption: ≤ 15 W (without HDD)
- Dimensions (W × D × H): 200 × 200 × 45 mm
-
Warranty: 1 Year With Warranty Of The Authorized Agent
Refund Policy:
If the order was prepaid by credit card / debit card, we provide our valued customers with a cash refund service
On his bank card or through other available payment methods.
In the case of the return and the method of payment was the payment upon delivery , the customer has the right to refund from our branches or by transferring to the customer’s bank account or his e-wallet of mobile companies. On our website, the customer is not entitled to request the amount in cash again.
* Refund do not include shipping and handling fees
Replacement and Return Policy:
You can replace the item or return it with a refund of its cash value within 14 days of receiving it as long as it is in its condition, provided that the invoice is available and the item is not used or unpacked.
Some products have different policies or requirements associated with their manufacturers and agent
