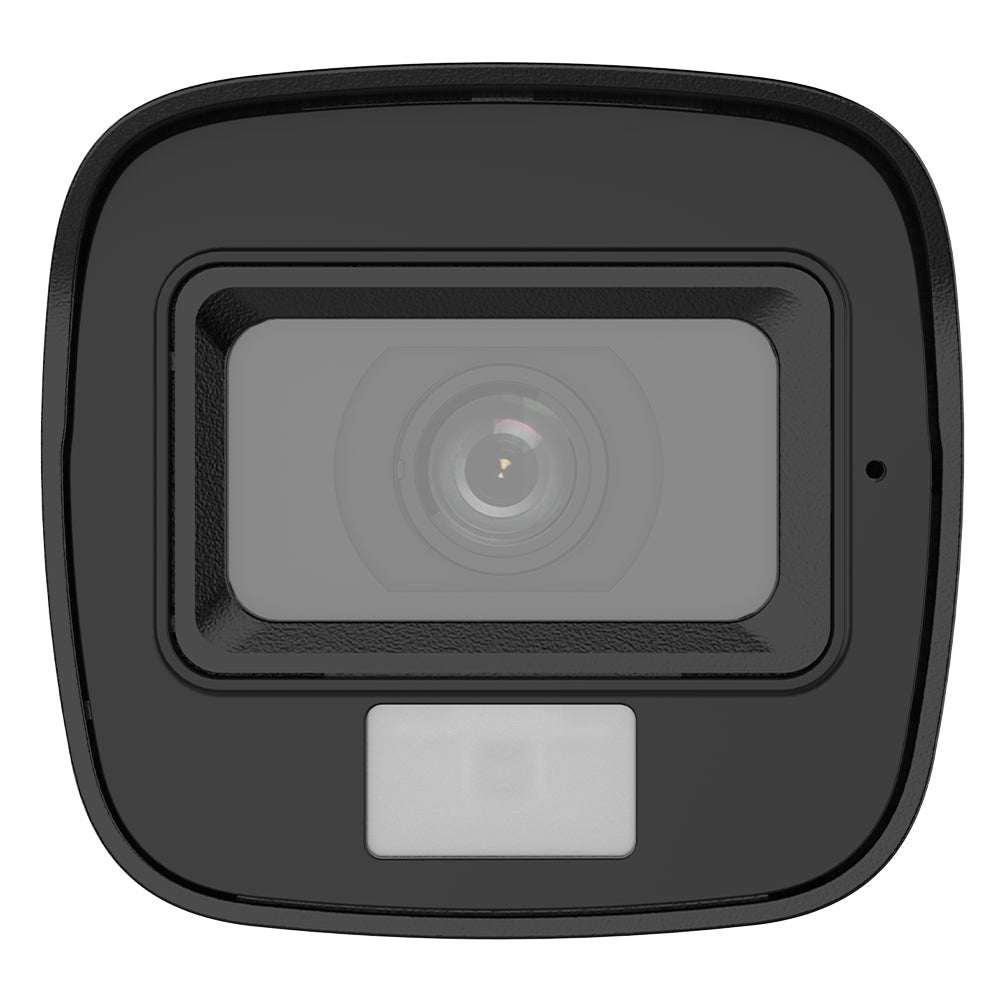

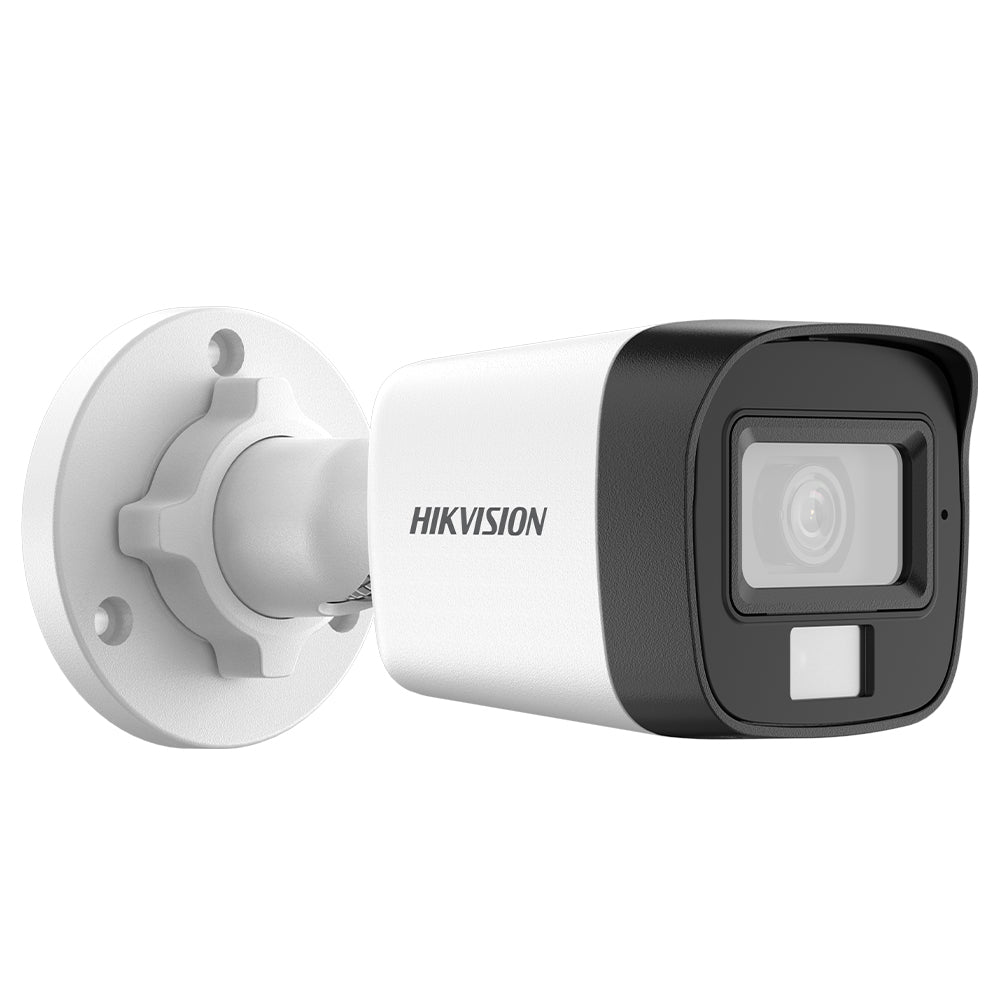

- Brand: Hikvision
- Model: DS-2CE16D0T-LPFS
- Type: Surveillance Camera
- Camera
- Image Sensor: 2 MP CMOS
- Resolution: 1920 (H) × 1080 (V)
- Frame Rate: TVI: 1080P @ 30 fps, 1080P @ 25 fps, AHD: 1080P @ 30 fps, 1080P @ 25 fps, CVI: 1080P @ 30 fps, 1080P @ 25 fps, CVBS: PAL/NTSC
- Lens: 3.6 mm fixed focal lens
- Shutter Time: PAL: 1/25 s to 1/50, 000 s; NTSC: 1/30 s to 1/50, 000 s
- Min. Illumination: 0.01 Lux @ (F1.6, AGC ON), 0 Lux with IR
-
Angle of View: Horizontal FOV: 78°, Vertical FOV: 42°, Diagonal FOV: 92°
- Adjustment Range: Pan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
- Lens Mount: M12
- Day & Night: ICR
- D/N Mode: Auto/Color/BW (Black and White)
-
Wide Dynamic Range (WDR): Digital WDR
-
Image Enhancement: DWDR/BLC/HLC/Global
-
Interface
-
Built-in Mic: Yes
-
Video Output: Switchable TVI/AHD/CVI/CVBS
-
General
- Operating Conditions: -40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
- IR Range: Up To 25 m
- Protection: IP67
- Power Supply: 12 VDC ± 25%
- Power Consumption: Max. 3.3W
- Material: Plastic
- Dimension: 138.8 × 60.9 × 57.9 mm
- Weight: 155 g
-
Warranty: 1 Year With Warranty Of The Authorized Agent
