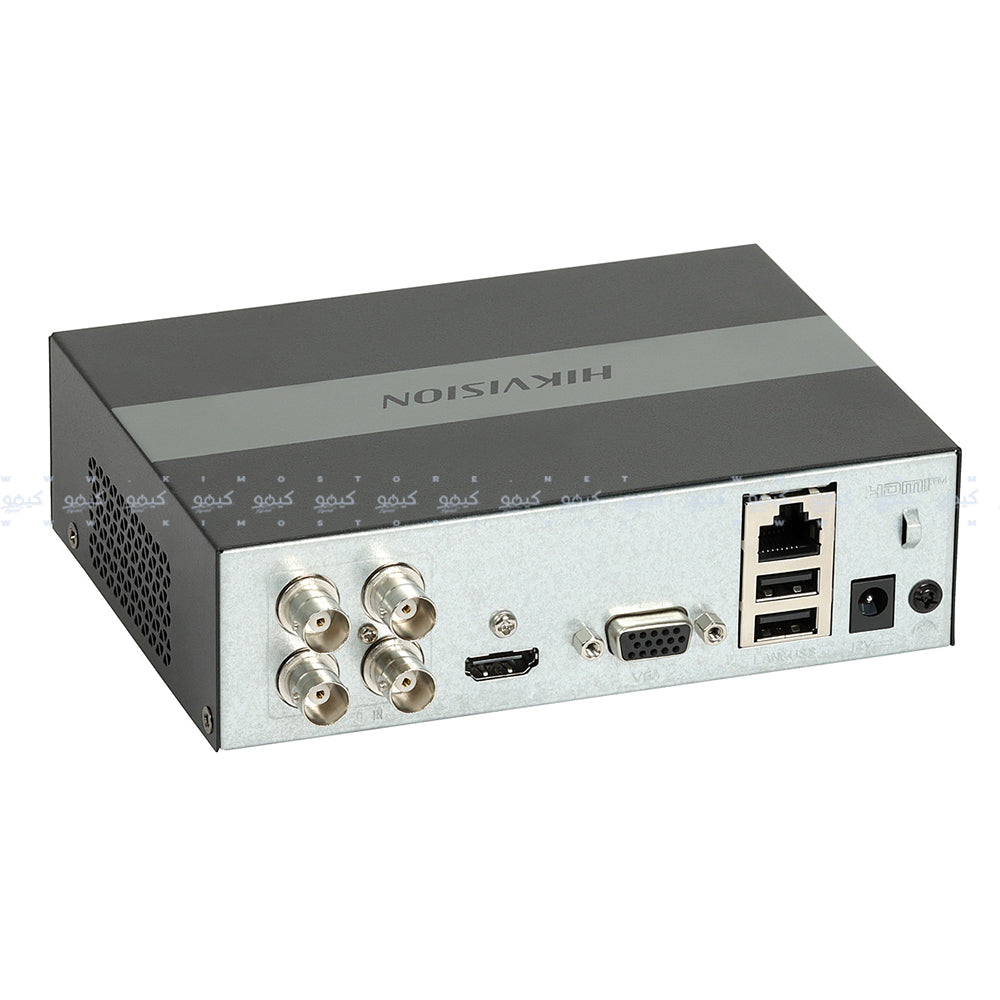

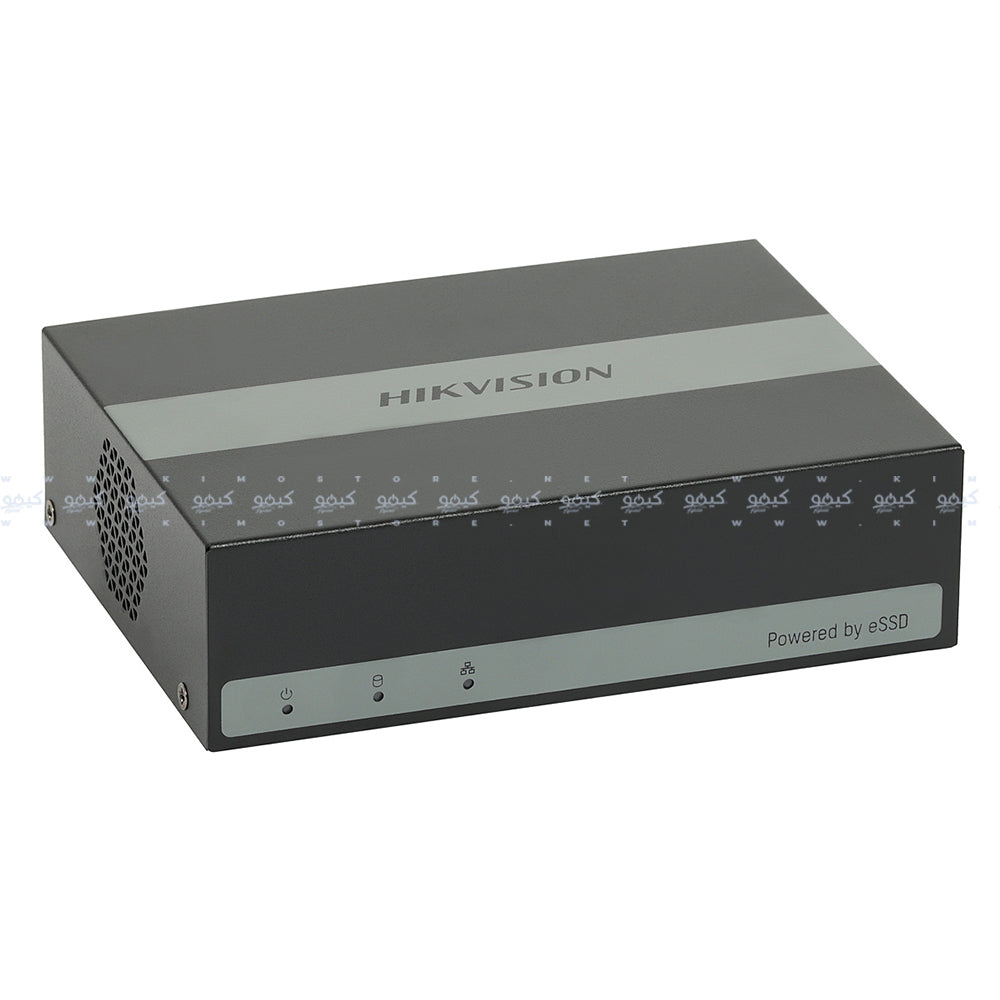

Hikvision DS-E04HQHI-B Built-in 512GB eSSD DVR 4CH

• IP Video Input: 1-ch, Up to 6 MP Resolution
• Analog Video Input: 4-ch BNC Interface (1.0 VP-P, 75 Ω), Supporting Coaxitron Connection
• Video Live: 1080P
• Video Recording: 720P
• Video Input Types: HDTVI/AHD/CVI/CVBS/IP
• VGA Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• HDMI Output: 1-ch, 1920 × 1080/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
• Audio Input: 4-ch via Coaxial Cable
• Audio Output: 1-ch via HDMI

• Video Compression: H.265 Pro/H.265
• Frame Rate: Main Stream: 4 MP Lite@15 fps; 1080p Lite/720p/WD1/4CIF@25 fps (P)/30 fps (N), 1080p/720p@15 fps; WD1/4CIF@25 fps (P)/30 fps (N), For 720p stream access: 720p/WD1/4CIF@25 fps (P)/30 fps (N), 4 MP Lite@15 fps; 1080p Lite/720p Lite/WD1/4CIF@25 fps (P)/30 fps (N), Sub-Stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• Video Bitrate: Automatic
• Stream Type: Video, Video & Audio
• Audio Bitrate: 64 Kbps

• Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
• Total Bandwidth: 72 Mbps
• Remote Connection: 32

• Capacity: Built-in 512 GB eSSD (480 GB available)
• USB: Rear Panel: 2× USB 2.0

• Operating Temperature: -10 °C to 45 °C (14 °F to 113 °F)
• Operating Humidity: 10% to 90%
• Power Supply: 12 VDC, 1A
• Power Consumption: ≤ 5.4 W (With eSSD)
• Dimensions (W × D × H): 151 × 121 × 46 mm


Warranty: 1 Year With Warranty Of The Authorized Agent
