Brand: Hikvision

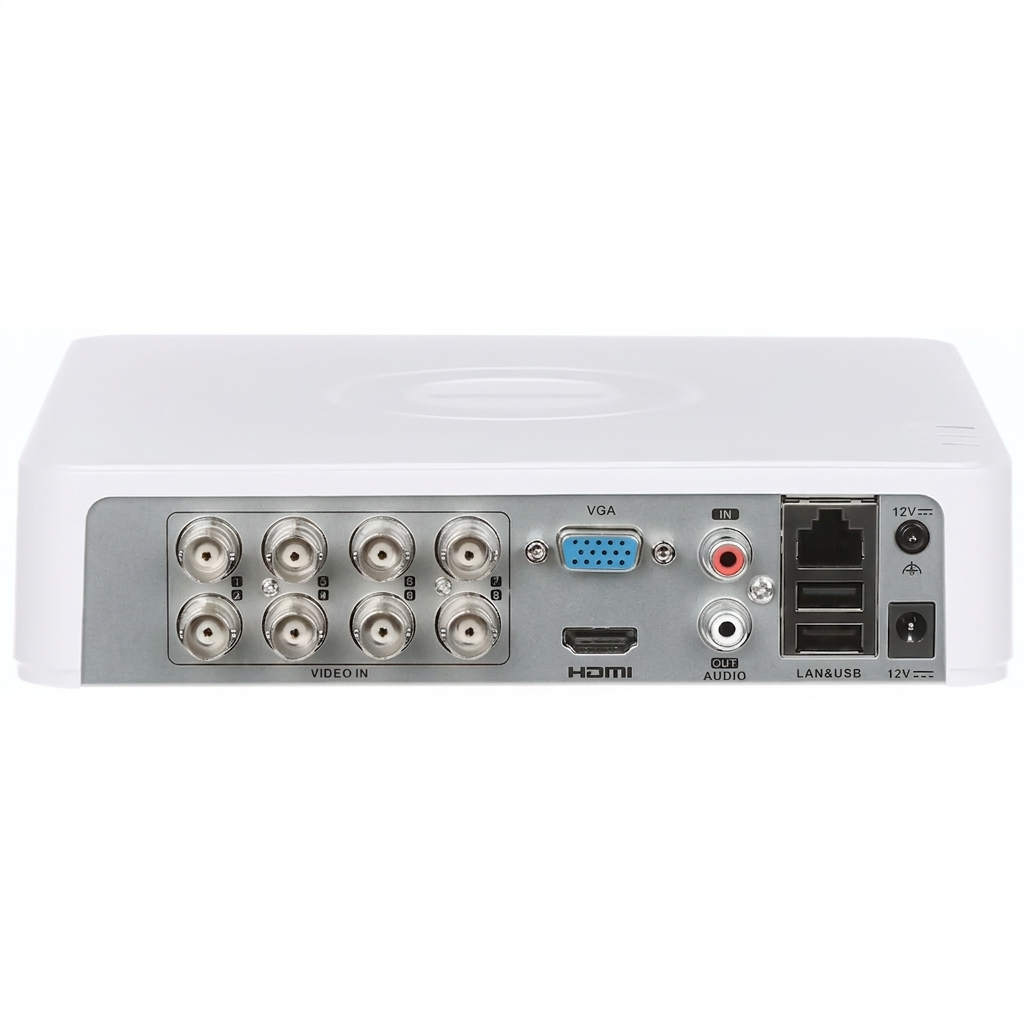

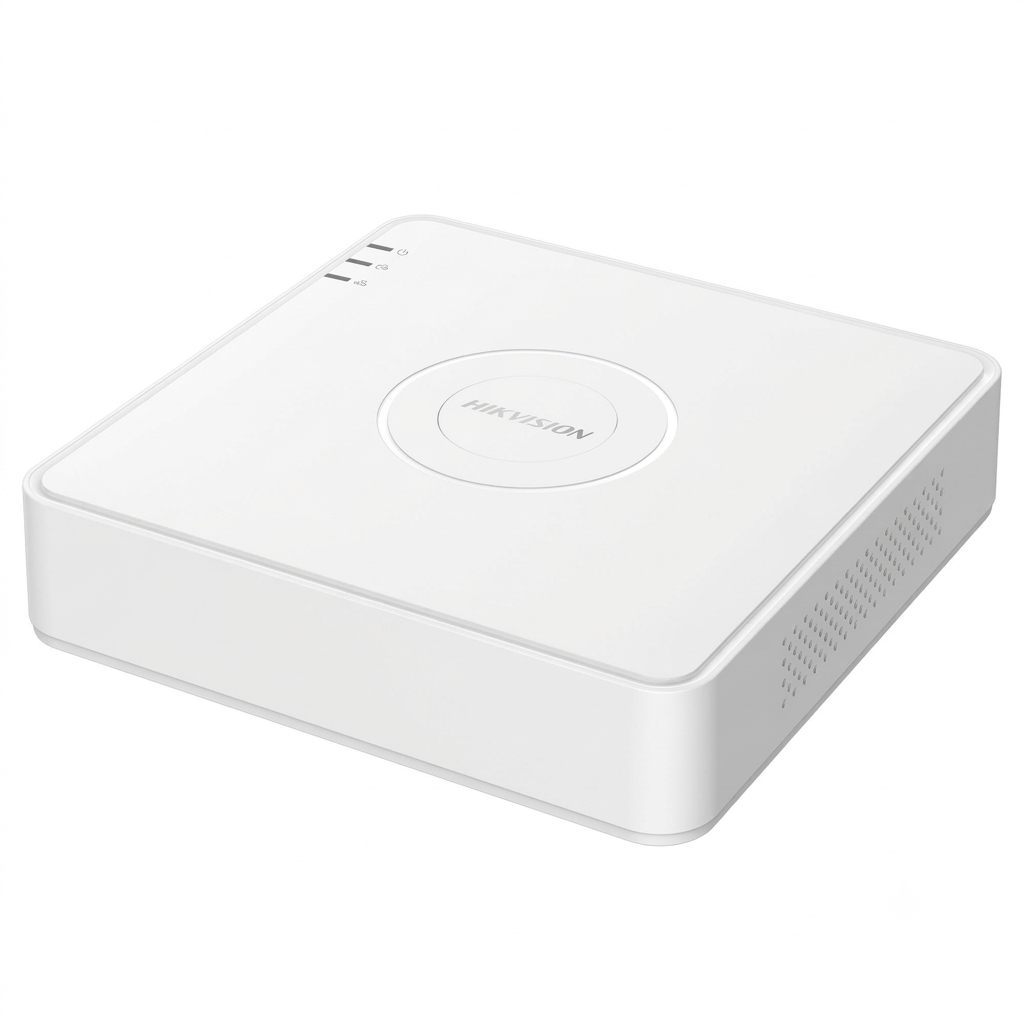

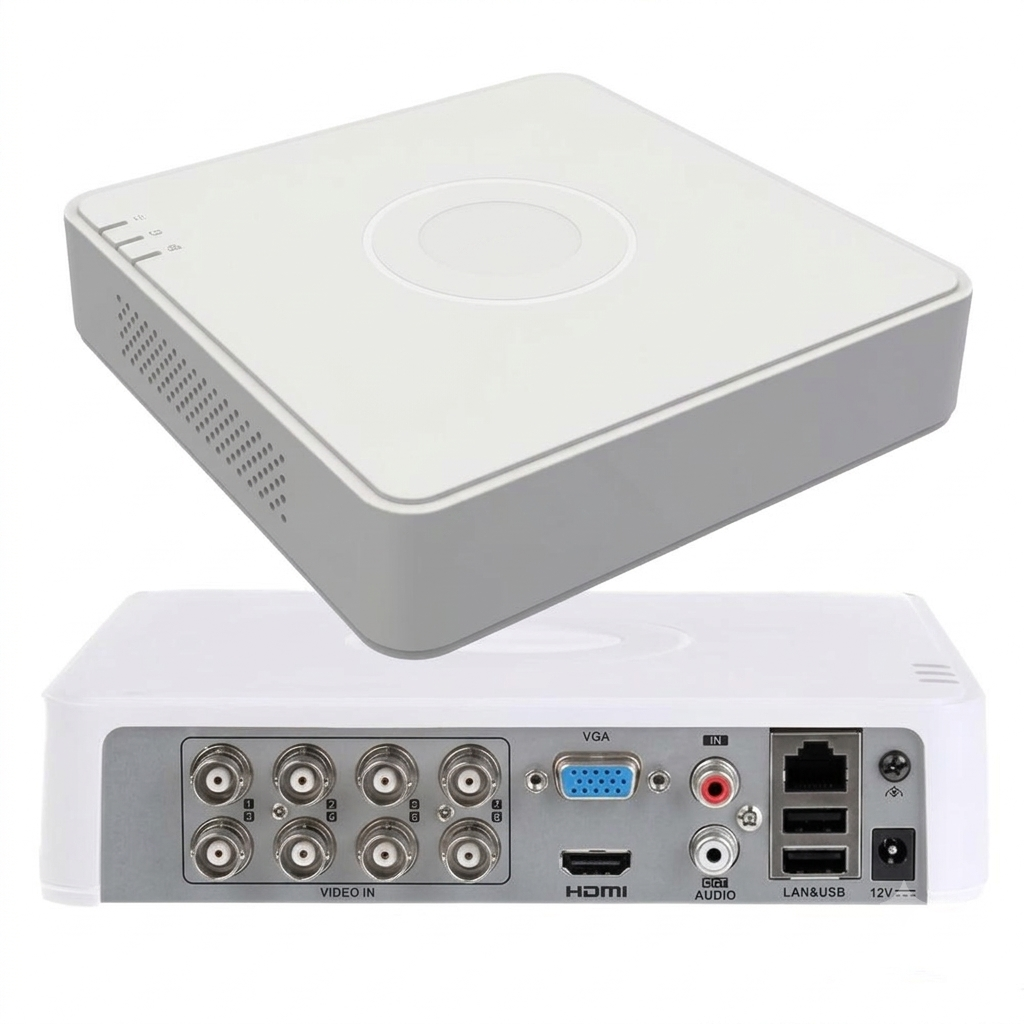

- Model: IDS-7108HQHI-M1/S
-
Type: DVR
- Video/Audio
- Analog Video Input: 8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- Video Live: 8 MP 4K
- Video Recording: Up to 6 MP
- Dual-stream: Support
- Video Bitrate: 32 Kbps to 6 Mbps
-
Video Inputs: HDTVI/AHD/CVI/CVBS/IP
-
HDCVI Input: 5 MP(2592 × 1944)@20 fps,4 MP(2560 × 1440)@30 fps, 4 MP(2560 × 1440)@25 fps, 1080p@30 fps, 1080p@25 fps, 720p@30 fps, 720p@25 fps
-
VGA/HDMI Output: HDMI: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz - VGA: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
-
Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ), 8-ch via coaxial cable
-
Audio Output: 1-ch, RCA (Linear, 1 KΩ)
-
CVBS Input: Support
-
Support Cameras: Up to 6 MP Network Cameras Can be Connected
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Synchronous Playback: 8-ch
- Interface
-
HDD Type: 1x SATA Interface
-
Capacity: Up to 10 TB capacity for each disk
-
Network Interface: 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
-
USB Interface: 2× USB 2.0
- General
-
Working: Temperature: -10 °C to +55 °C (+14 °F to +131 °F), Humidity: 10% to 90%
-
Power Supply: 12 VDC,1.33A
-
Power Consumption: ≤ 12 W (Without HDD)
-
Dimensions: 200 × 200 × 45mm
-
Warranty: 1 Year With Warranty Of The Authorized Agent
