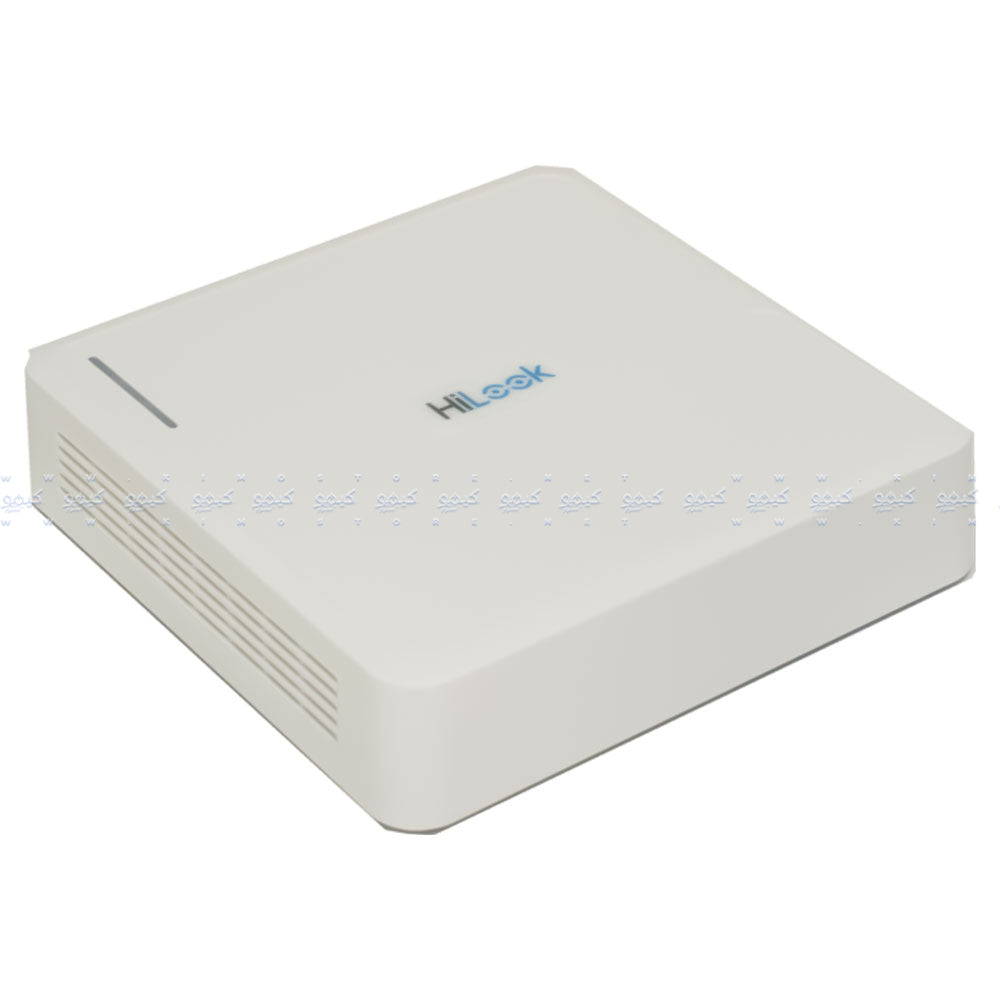

- Brand: Hilook
- Model: 104G-M1(C)
- Type: DVR
- Video/Audio
- Analog Video Input: 4-ch BNC interface (1.0 Vp-p, 75 Ω)
- Video Live: 1080P
- Video Recording: 720P
- Up to 5-CH IP Camera Input (up to 1080p)
- Video Inputs: HDTVI/AHD/CVI/CVBS/IP
- Frame Rate: Main stream: For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N) - stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N) - Sub-stream: 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- VGA/HDMI Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- Audio Input: 1-ch RCA (2.0 Vp-p, 1 KΩ)
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- CVBS Input: Support
- Support IP Cameras: Yes
- Interface
- HDD Type: 1x SATA Interface
- Capacity: Up To 4 TB Capacity For Each Disk
- Network Interface: 1x RJ45 10/100 Mbps self-adaptive Ethernet interface
- USB Interface: Rear panel: 2 × USB 2.0
- General
- Operating Condition: Temperature: -10 °C to 55 °C (14 °F to +31 °F) / Humidity: 10% to 90%
-
Power Supply: 12V DC, 1.5 A
- Power Consumption: ≤16W (without HDD)
- Dimensions: 200 × 200 × 45 mm
-
Warranty: 1 Year With Warranty Of The Authorized Agent
